QYY- Best integrated solar street light IP65

QYY-  Best integrated solar street light IP65

Specifications：

Product performance parameters：

Body: aluminum body, anti-UV, Corrosion protection.

Cover: PMMA lens. anti-UV, High light transmittance

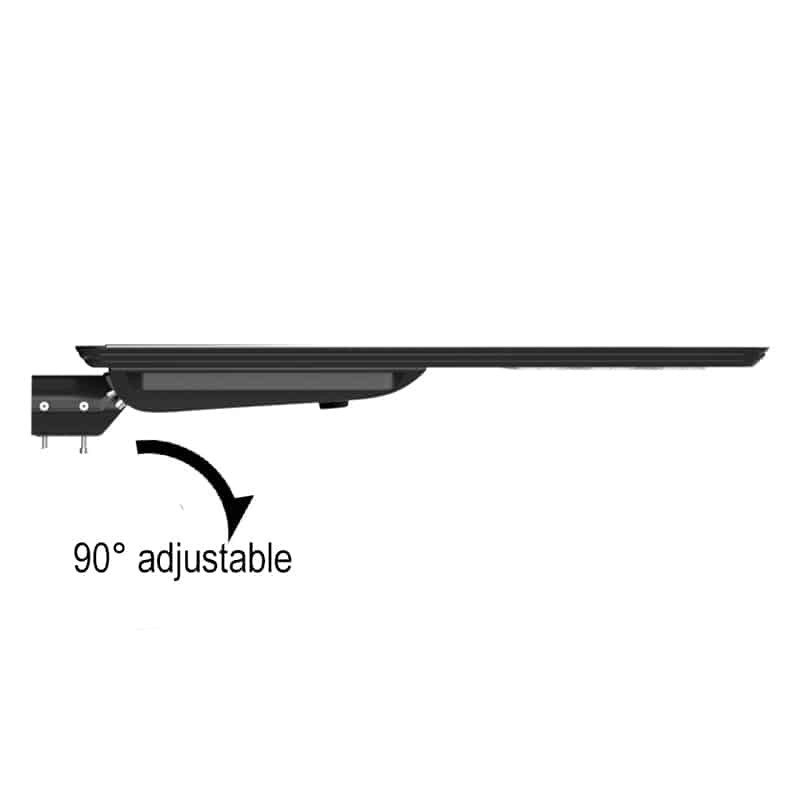

Installation joint: aluminum, it is ok to adjust the joint to be pole installation

Battery:

Li-Battery type: LiFePO4 battery.

working voltage: DC3.2V or DC12.8V for large power

Duration: 3-5 raining days

Charge time: 6-8hours (strong sunlight)

dis-charge time: full power >15hours; half power>30hours.

Lifetime: >2000 recycle

Solar Panel

Type: Mono solar-type

Efficiency:>20%

Working voltage: 18V

Lifetime:>25years

Warranty: 10years

Controller & Sensor

Solar controller type: PWM is standard, and the MPPT controller is an option

Sensor: Radar sensor type

sensor distance: 10-14meter

Controller & Sensor

Solar controller type: PWM is standard, and the MPPT controller is an option

Sensor: Radar sensor type

sensor distance: 10-14meter

Optical

Light source brand: Philips SMD chips

Color rendering index:>80

Luminous flux:200lm/W output

SDCM:<5

Beam angle: 120°

Lifetime:>50000Hrs

Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K

Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).

Installation：

MPPT solar controller

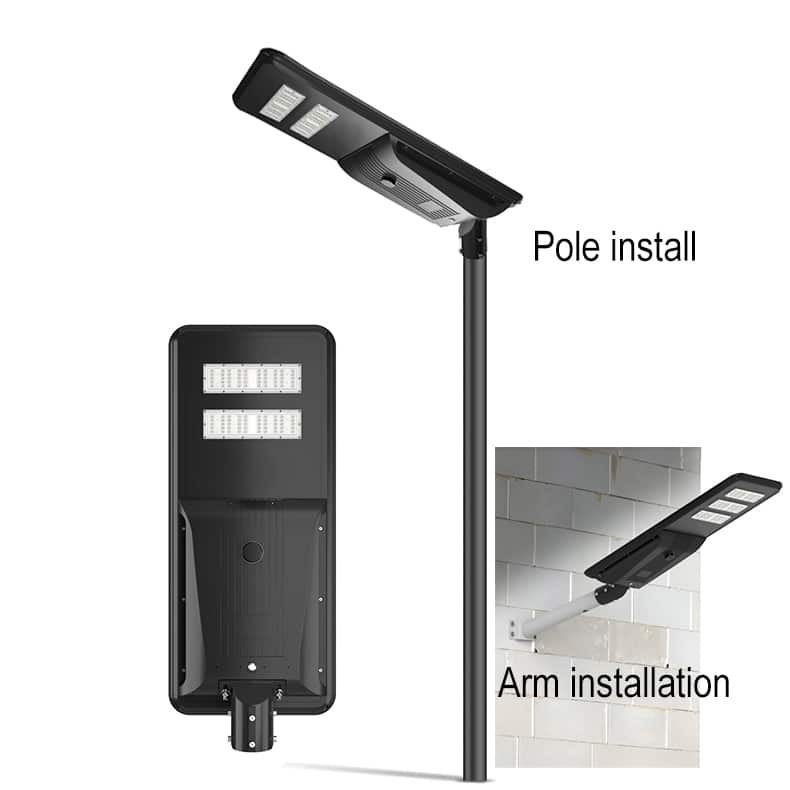

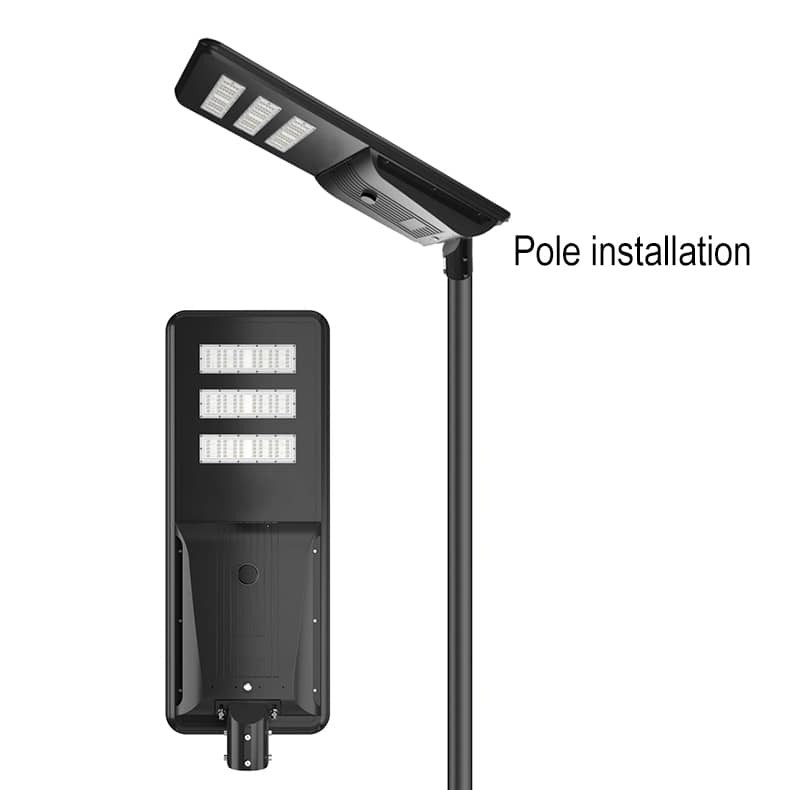

This type of solar street light has an adjustable connector with an installation diameter of 60-65mm. It can be directly

installed on the top of the lamp post or mounted on the lamp post with the arm - no wiring is required.
