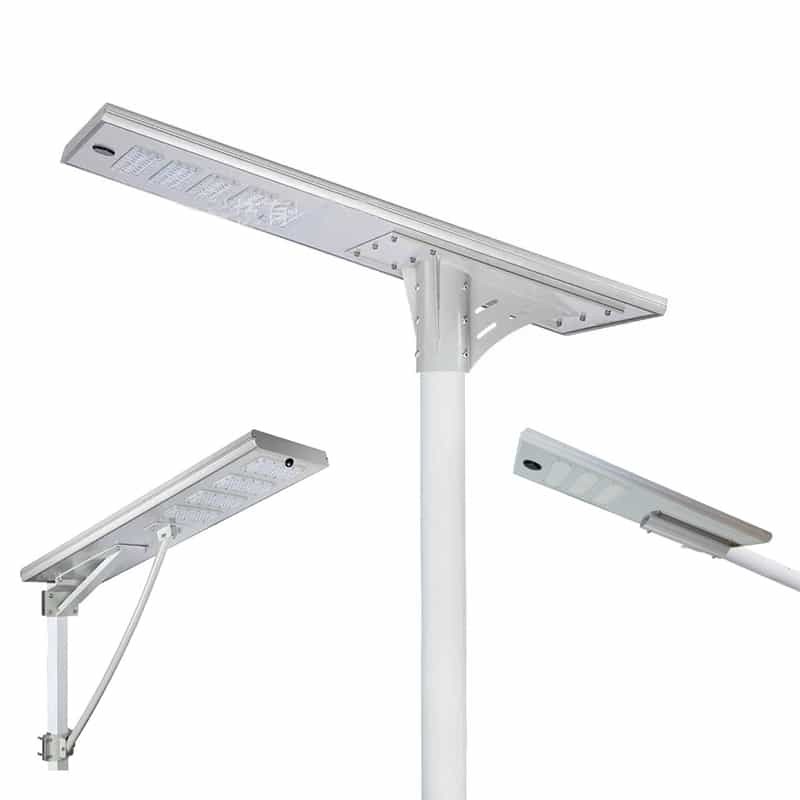

Integrated solar street light with sensing device and 3 different installation joints, suitable for different patterns of street lamp posts. It is integrated with a photovoltaic cell that can automatically turn on/off from dusk to dawn. Radar sensors will help save more energy (when there is any movement, the wattage of the street lamp will be 100%, but when there is no movement, its wattage is only about 30%). Buying a remote control is also possible.

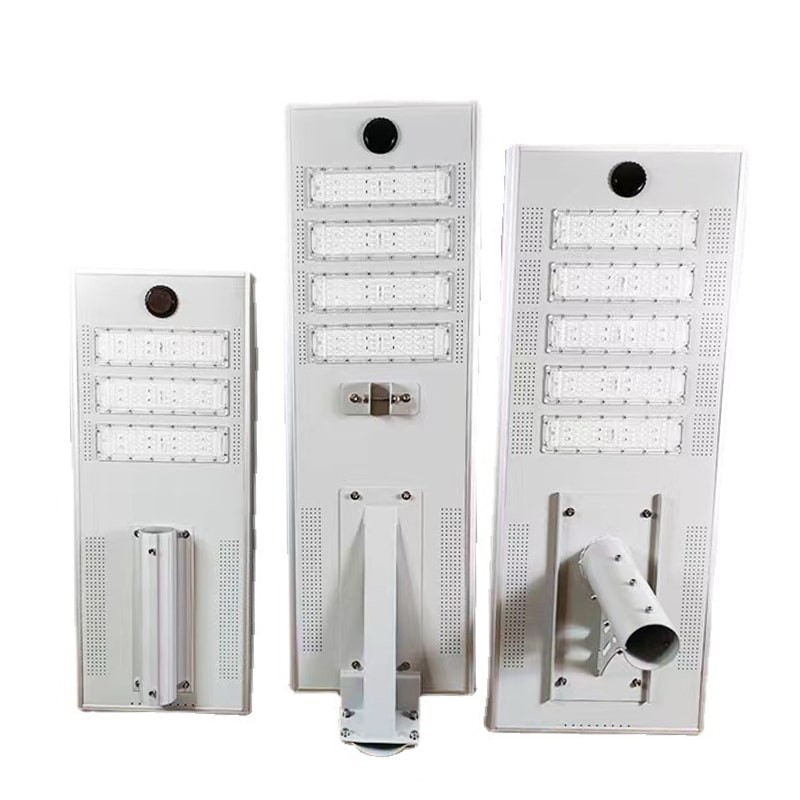

QYY- Solar LED Street light 20W-120W
Specifications：
| Order model | Wattage | Dimension | Led Qty | Lumens | Battery | Solar panel | Mounting Height | Mounting space | IP Grade |
| QYY-SSL-40F | 20W | 787*359*140mm | 50pcs | 4000lm | 3.2V 32AH | 18V 35W | 4-5M | 15-20M | IP65 |
| QYY-SSL-60F | 30W | 840*528*50mm | 100pcs | 6000lm | 3.2V 76AH | 18V 50W | 5-6M | 15-20M | IP65 |
| QYY-SSL-80F | 40W | 1000*368*50mm | 100pcs | 8000lm | 3.2V 100AH | 18V 60W | 6-7M | 20M | IP65 |
| QYY-SSL-120F | 60W | 1000*528*50mm | 150pcs | 10000lm | 12.8V 30AH | 18V 90W | 8-9M | 22-25M | IP65 |
| QYY-SSL-160F | 80W | 1220*528*50mm | 250pcs | 16000lm | 12.8V 45AH | 18V 110W | 9-10M | 23-28M | IP65 |
| QYY-SSL-200F | 100W | 1310*528*50mm | 300pcs | 20000lm | 12.8V 60AH | 18V 120W | 10-12M | 27-34M | IP65 |
| QYY-SSL-240F | 120W | 1490*528*50mm | 350pcs | 24000lm | 12.8V 75AH | 18V 150W | 12-15M | 30-40M | IP65 |
Product performance parameters：
Body: aluminum body, anti-UV, Corrosion protection.
Cover: PMMA lens. anti-UV, High light transmittance
Installation joint: aluminum/metal.
Battery:
Li-Battery type: LiFePO4 battery.
working voltage: DC3.2V or DC12.8V for large power
Duration: 3-5 raining days
Charge time: 6-8hours (strong sunlight)
dis-charge time: full power >15hours; half power>30hours.
Lifetime: >2000 recycle

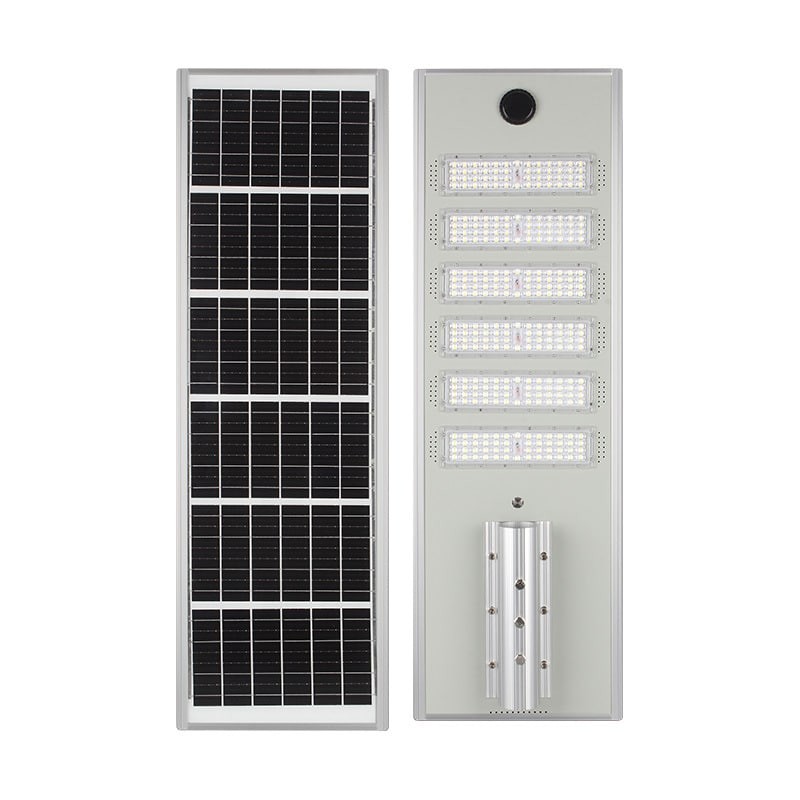

Solar Panel
Type: Mono solar-type
Efficiency:>20%
Working voltage: 18V
Lifetime:>25years
Warranty: 10years
Controller & Sensor
Solar controller type: PWM is standard, and the MPPT controller is an option
Sensor: Radar sensor type
sensor distance: 10-14mete
Optical
Light source brand: Philips SMD chips
Color rendering index:>80
Lumens:200lm/W output
SDCM:<5
Beam angle: 90° Medium distribution.
Lifetime:>50000Hrs
Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
Installation：

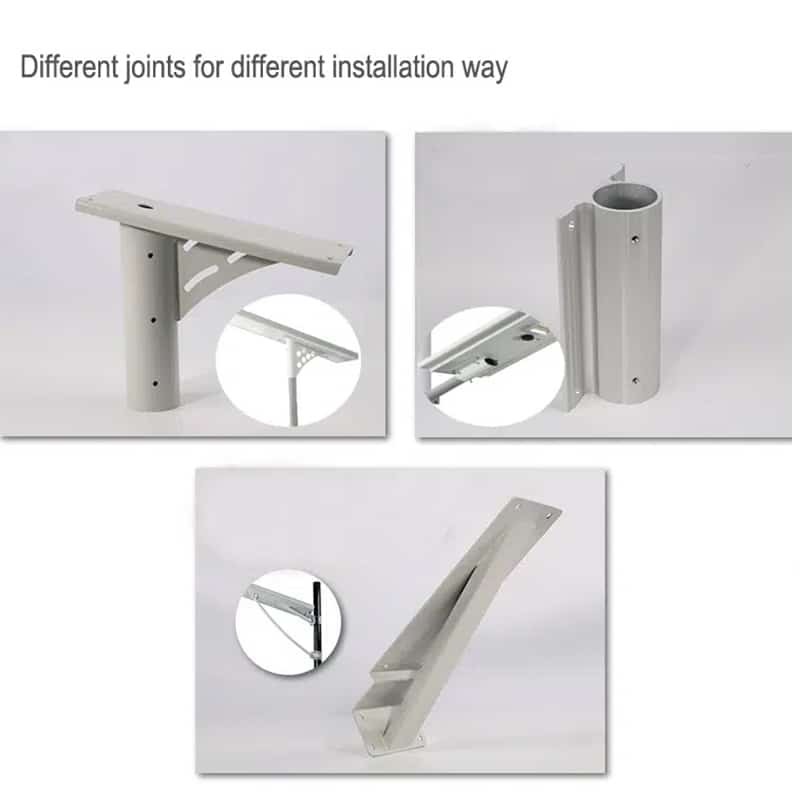

Different installation joints
Solar controller (PWM or MPPT)
