automated all-in-two solar street light system is mainly composed of two parts, a monocrystalline silicon solar panel, and a solar street light fixture. lithium-ion LifePO4 battery pack and solar controller are all placed inside the street light body. The lamp body is connected to the solar panel with a quick connector. This solar street light is with a 12.8V large-capacity battery and can be freely matched with solar panels of different powers, it is very suitable for municipal engineering.

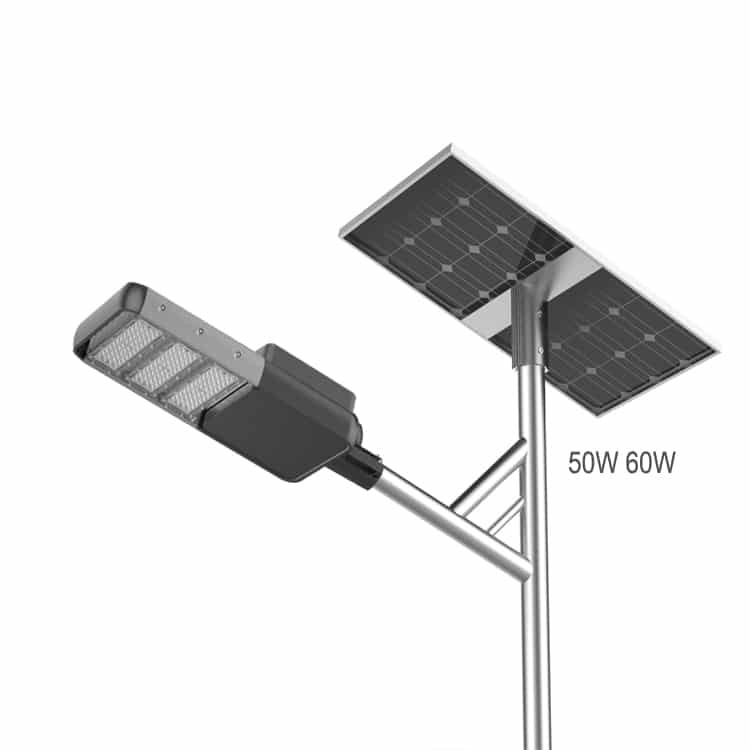

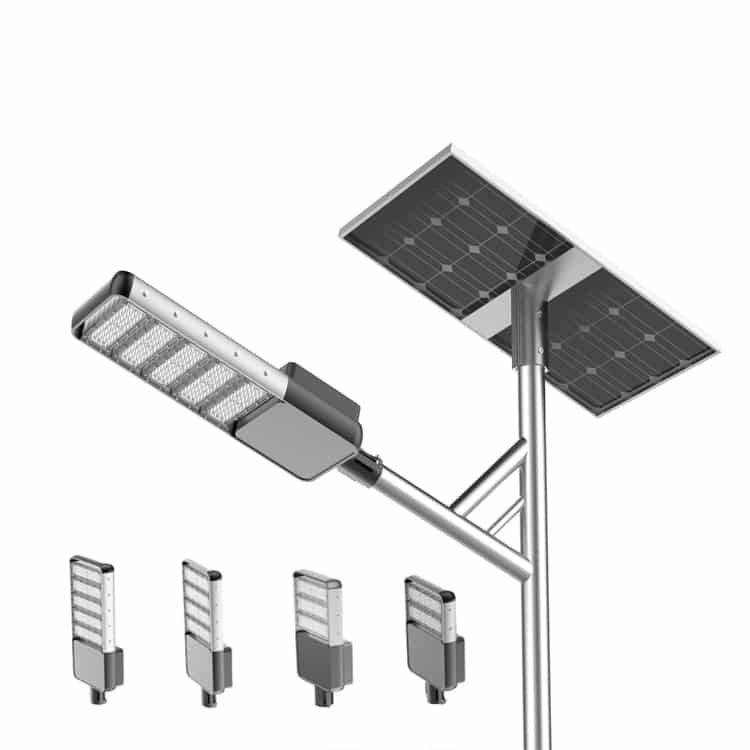

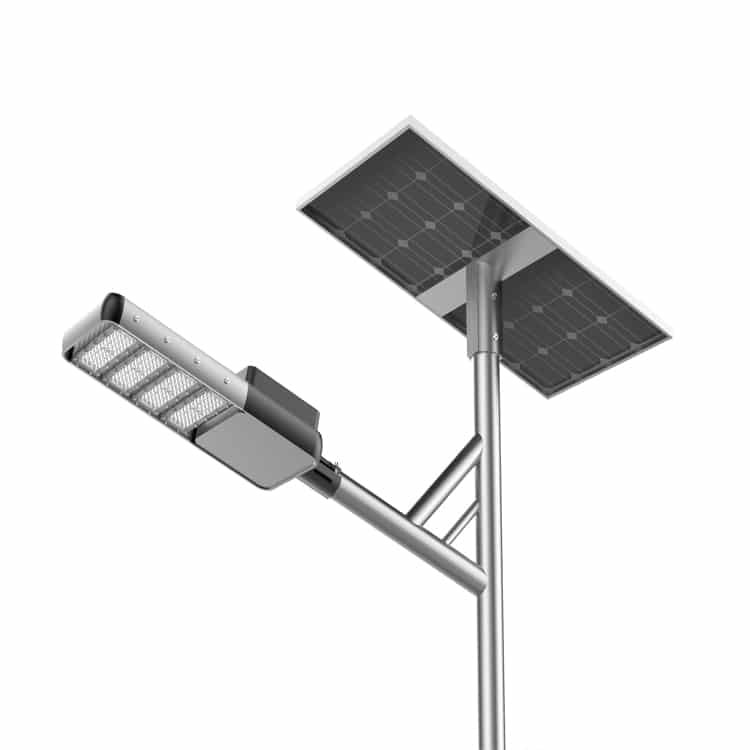

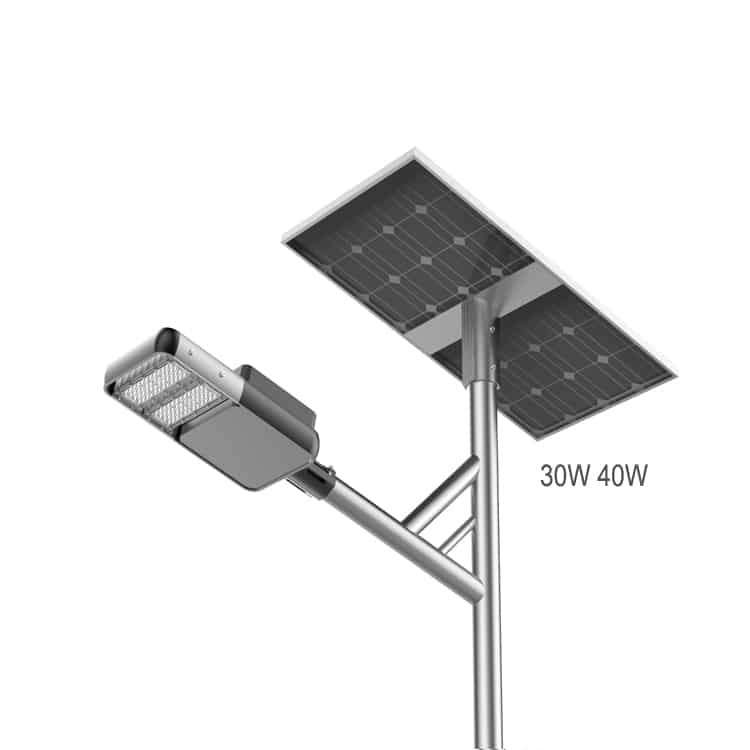

QYY- All In Two Solar Street Light System
Specifications：
| Order model | Wattage | Dimension | Led Qty | Lumens | Battery | Solar panel | Mounting Height | Mounting space | IP Grade |
| QYY-ZC-30WA | 30W | 575*280*100mm | 96pcs | 3900-4200lm | 12.8V 18AH | 18V 40W | 4-6M | 15-20M | IP65 |
| QYY-ZC-40WA | 40W | 575*280*100mm | 96pcs | 4800-5500lm | 12.8V 24AH | 18V 50W | 5-7M | 20M | IP65 |
| QYY-ZC-50WA | 50W | 665*280*100mm | 144pcs | 6000-7500lm | 12.8V 30AH | 18V 65W | 6-7M | 20-25M | IP65 |
| QYY-ZC-60WA | 60W | 665*280*100mm | 144pcs | 7200-8000lm | 12.8V 36AH | 18V 80W | 6-8M | 20-27M | IP65 |
| QYY-ZC-80WA | 80W | 755*280*100mm | 192pcs | 9600-10000lm | 12.8V 42AH | 18V 100W | 7-9M | 25-30M | IP65 |
| QYY-ZC-100WA | 100W | 845*280*100mm | 240pcs | 12000lm-14000lm | 12.8V 54AH | 18V 130W | 9-10M | 30-35M | IP65 |
| QYY-ZC-120WA | 120W | 845*280*100mm | 240pcs | 14000-15000lm | 12.8V 60AH | 18V 170W | 10-12M | 30-40M | IP65 |
Feature：
Dusk to dawn: Solar-street light is integrated with a photocell device, and is turned on/off automatically.
Flexible working model: The standard version: first 3 hours of 100% power; next 3 hours for 30-50% power,
the last 6 hours for 20-30% power. It is also adjusted by a remote controller on demand.
Adjustable light module: LED module can be at an adjustable angle of 25°, suitable for different terrain roads.
Easy installation: The whole system includes fast waterproof connectors. Plug and play design for easy connection and installation
Wide working temperature: range of -30℃ to 60℃.
Various color temperatures: 3000K warm white;4000k daylight, 6500K Cold white.
Body:
Aluminum alloy housing and PC Cover, IP65 Waterproof.
Light source: Philips/Osram SMD3030 LED Chips, 170lm/W output Max. Lifetime>100000hrs.
Battery: LifePO4 Li-battery, 12.8V, big capacity for long duration (3-5raining days).
Solar Panel: Monocrystalline Silicon solar panel, efficiency up to 24%.
Solar controller: PWM/MPPT type available, Solar Charging Time is only 6 hours.
Remote controller: included for each order.
Installation & Mounting：
The installation pole diameter should be 60-65mm. There is no including poles or brackets for solar panels
and street light fixtures. It is fast to do installation between the solar panel and light body by
quick connector after preparing the brackets and pole.
