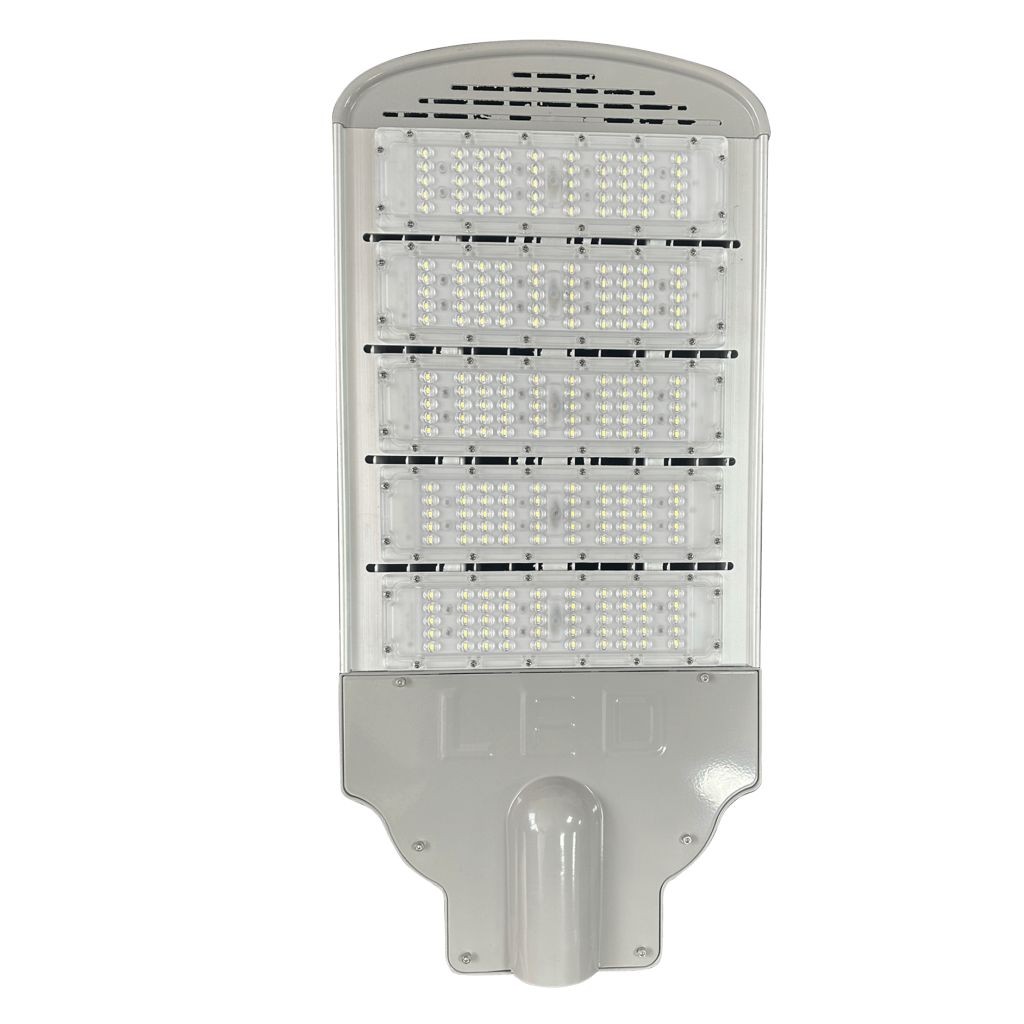

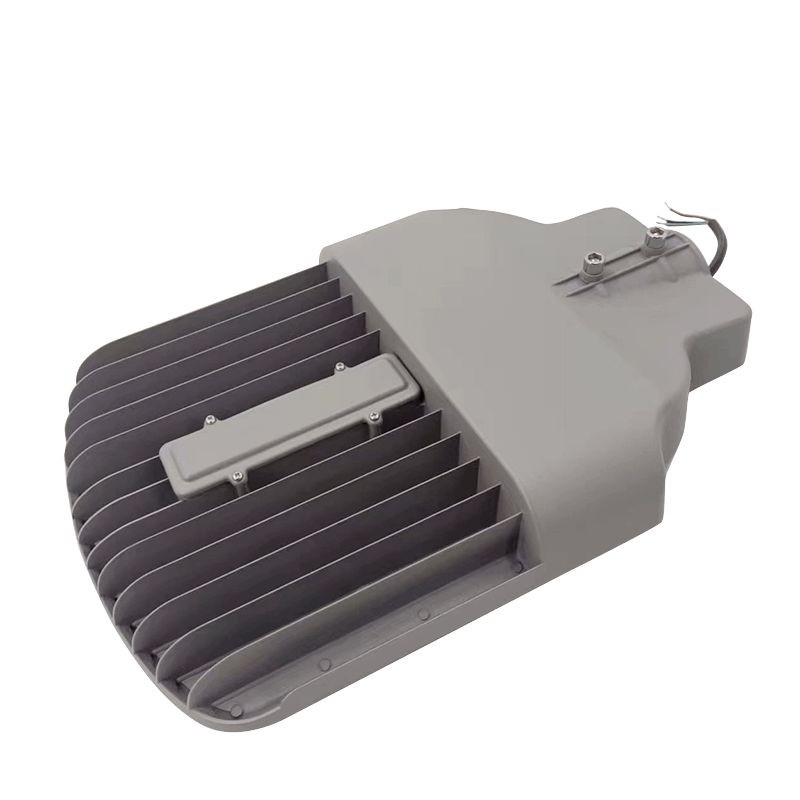

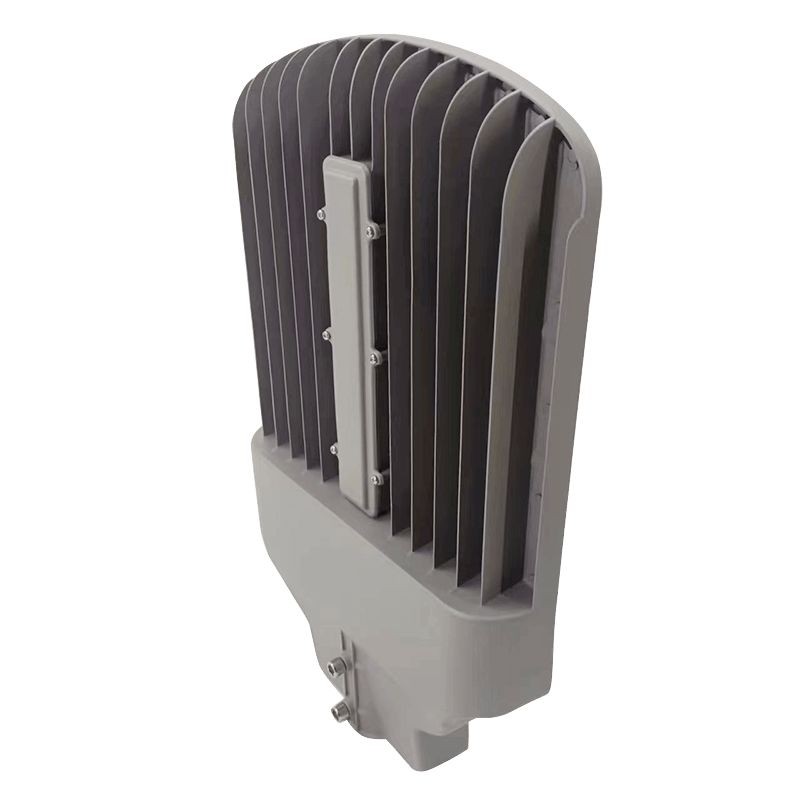

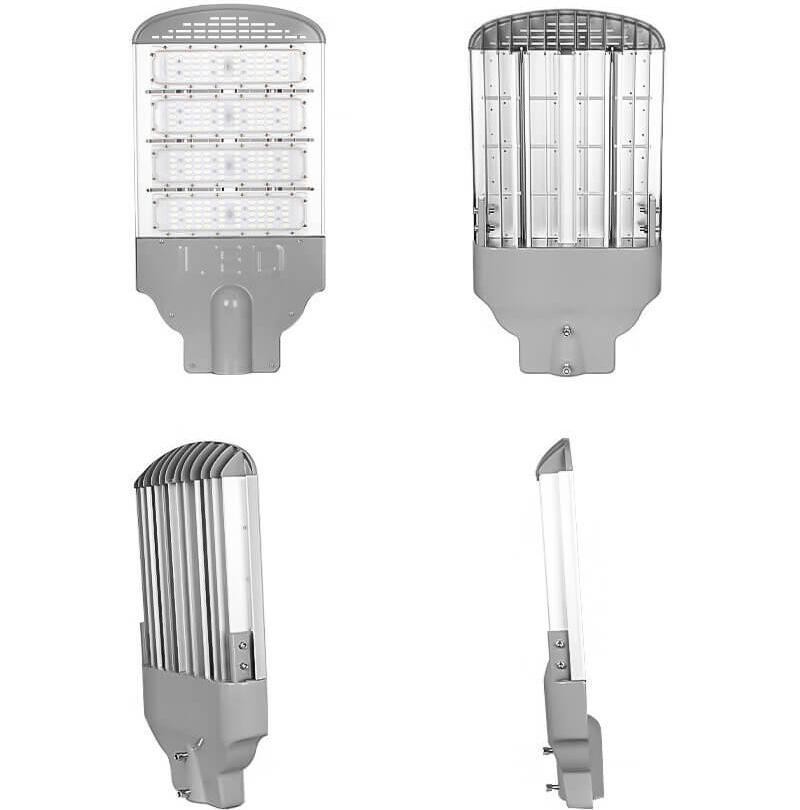

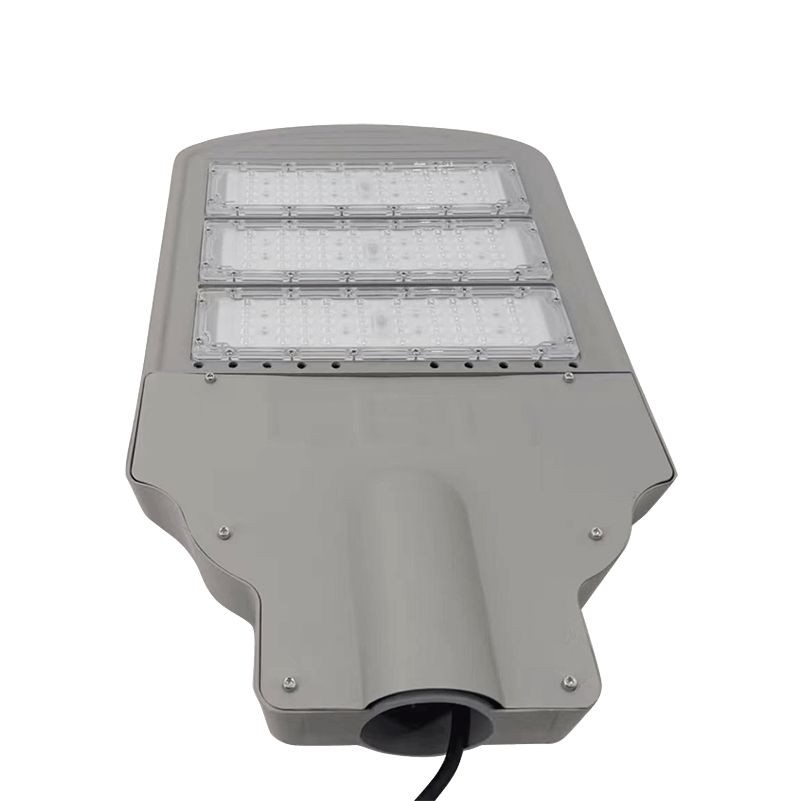

QYY- Economic LED street light 3000K

QYY- Economic LED street light 3000K

Specifications：

1. Power supply voltage: AC 180~265 V

2.Power frequency: 50/60HZ

3.Rated power: 80W, 100W, 120W

4.Rated current: 0.45A

5.Color temperature: 6000K

6.Power factor: ≥ 0.98

7.Luminous flux: 11000LM

8.Installation height: ≤ 12M

9.Dimensions: 450 * 310 * 80mm

10.Weight 1.9KG

11.Protection level: IP65

Wiring Connection：

1. Brown (red) color: live line

2. Blue (black) color: zero line

3. Yellow green: ground wire

4. Precautions for use

Precautions for use ：

1. When wiring, make sure the wiring method is correct, the wire ends are in good contact, and protective measures

   are taken at the wiring location to prevent leakage.When installing the lamp, the fastening screws on the hook must

   be tightened to prevent the hanging chain from loosening, or the brackets at the four corners must be firmly fixed to prevent falling.

2. The standard wide voltage of this lamp is AC180-265V. Do not use a lower or higher power supply voltage to avoid burning out.

3. The light-emitting surface of this lamp is designed with a PC cover. If it breaks, it needs to be replaced in time.
