QYY- 200Watt 200 Watt 200Wp Small Mono Solar Panel

QYY- 200Watt 200 Watt 200Wp Small Mono Solar Panel

Paneles Solares De 12V 150 Watt 200Watt 200 Watt 200Wp Small Mono Solar Panel

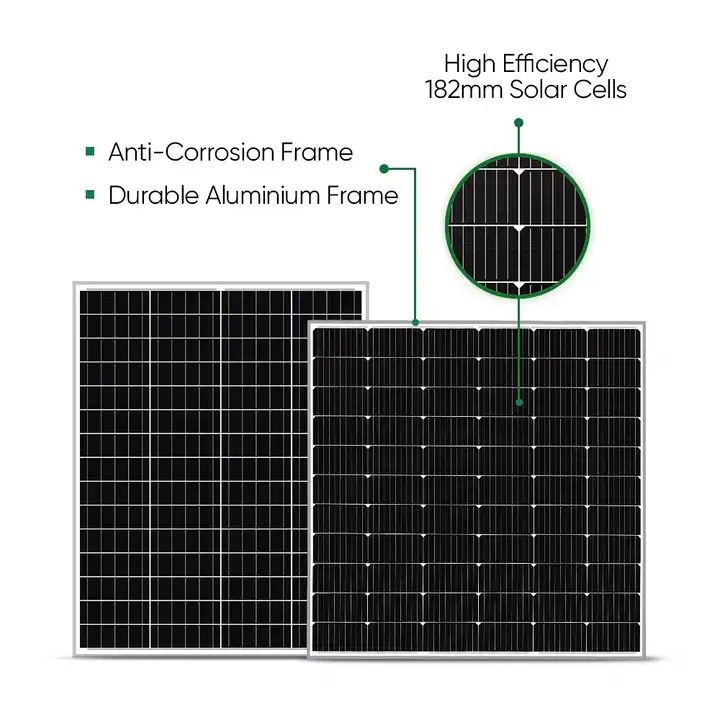

Cell size：182mmx182mm
Type：Customized solar panel
Panel Efficiency：20.5%
Panel Dimensions：935 * 765 * 30 mm
Type：Customized Solar Panel
Solar Cells：Monocrystalline
Cell Orientation：32 cells (4 * 8)
Weight：7.7KG
Glass：3.2 mm (0.13 inches), High Transmission, AR Coated Tempered： Glass
Backsheet：White
Frame：Silver / Black Anodized Aluminium Alloy

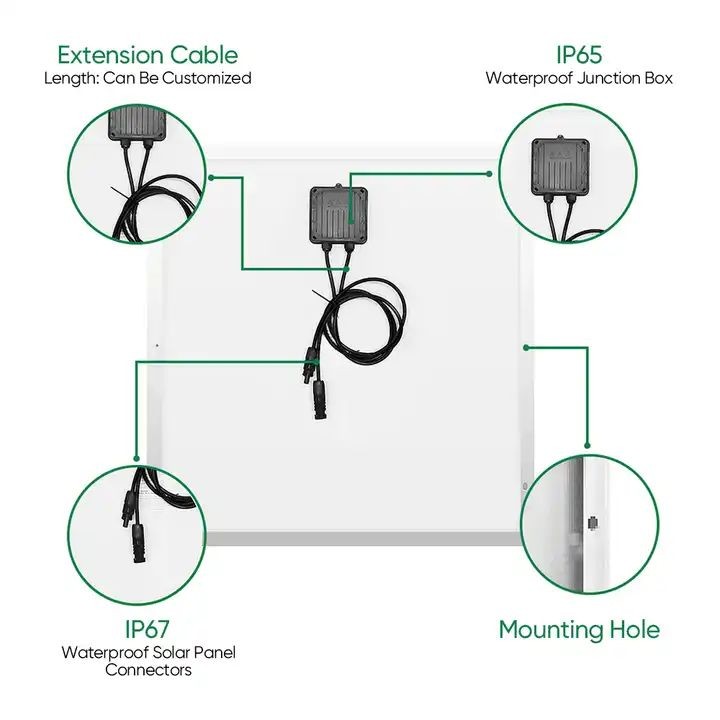

Junction Box：IP 68 rated
Cables：4.0mm2

QYY- 200Watt 200 Watt 200Wp Small Mono Solar Panel

Specifications：

Model Number	140M-32	180M-32	200M-32	220M-32	230M-32	240M-32
Testing Condition	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	140	150	200	220	230	240
Open Circuit Voltage (Voc/V)	22	21.8	22.08	21.74	21.94	22.08
Short Circuit Current (Isc/A)	7.68	8.42	10.8	12.45	12.71	12.96
Voltage at Maximum Power (Vmp/V)	19.16	18.79	19.41	18.86	19.03	19.41
Current at Maximum Power (Imp/A)	7.31	7.98	10.3	11.79	12.09	12.36
Module Weight(Kg)	7.77	8.56	10.18	12.6	12.6	12.6

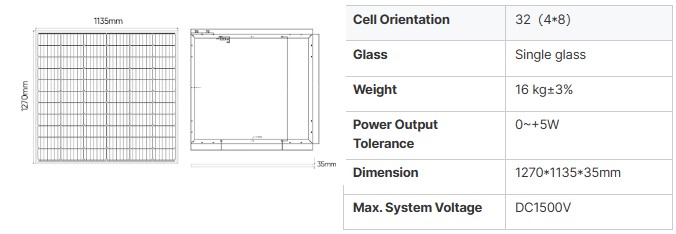

Module Dimension (mm)	93576530	103076530	122576530	151576530	151576530	151576530
Model Number	250M-66	260M-66	270M-66	280M-66	290M-66	300M-66
Testing Condition	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	250	260	270	280	290	300
Open Circuit Voltage (Voc/V)	44.52	44.67	44.87	45.14	45.44	45.54
Short Circuit Current (Isc/A)	6.97	7.19	7.39	7.54	7.66	7.85
Voltage at Maximum Power (Vmp/V)	38.11	38.26	38.56	39.09	39.77	40.04
Current at Maximum Power (Imp/A)	6.56	6.8	7	7.16	7.29
Current at Maximum Power (Imp/A)	6.56	6.8	7	7.16	7.29
Module Weight(Kg)	16	16	16	16	16	16

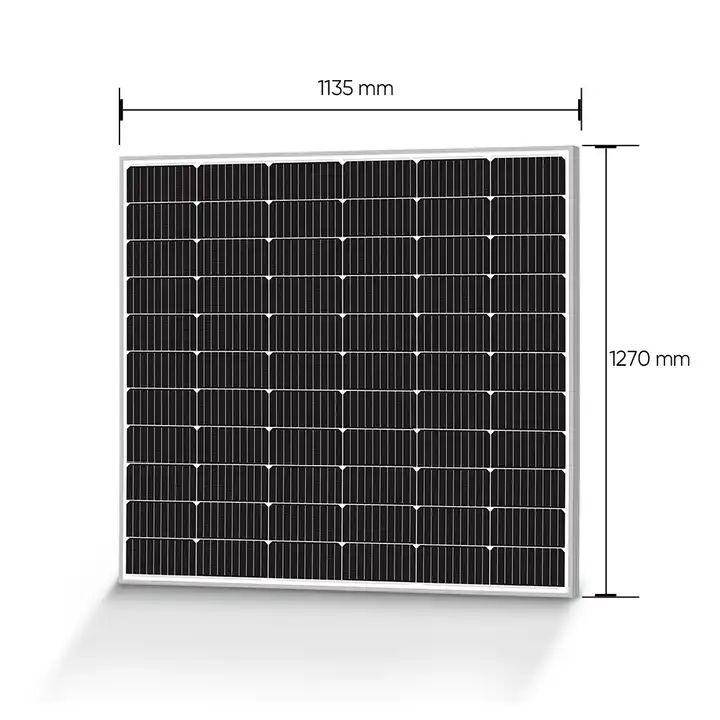

Module Dimension (mm)	1270113535	1270113535	1270113535	1270113535	1270113535	1270113535
