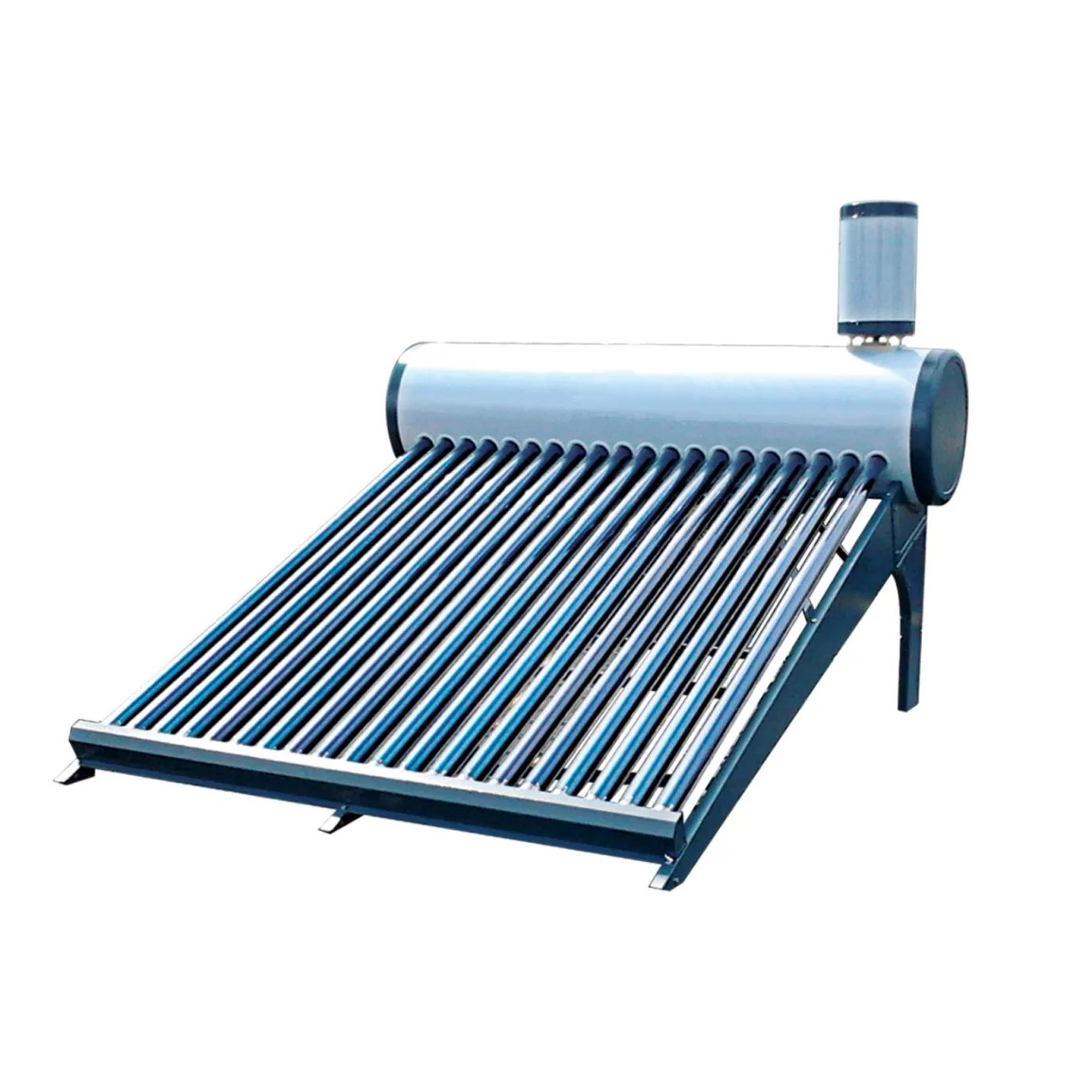

QYY- Solar Heater 150 liters

QYY- Solar Heater 150 liters

Specification：

Vacuum tube：

solar heaters use CERMET coating – a special multi-layer paint which increases absorption of solar

Vacuum tubes create excellent insulation, improving the conversion of solar energy to heat energy,

even during cloudy conditions. Maximum solar energy is thus collected with less surface area.

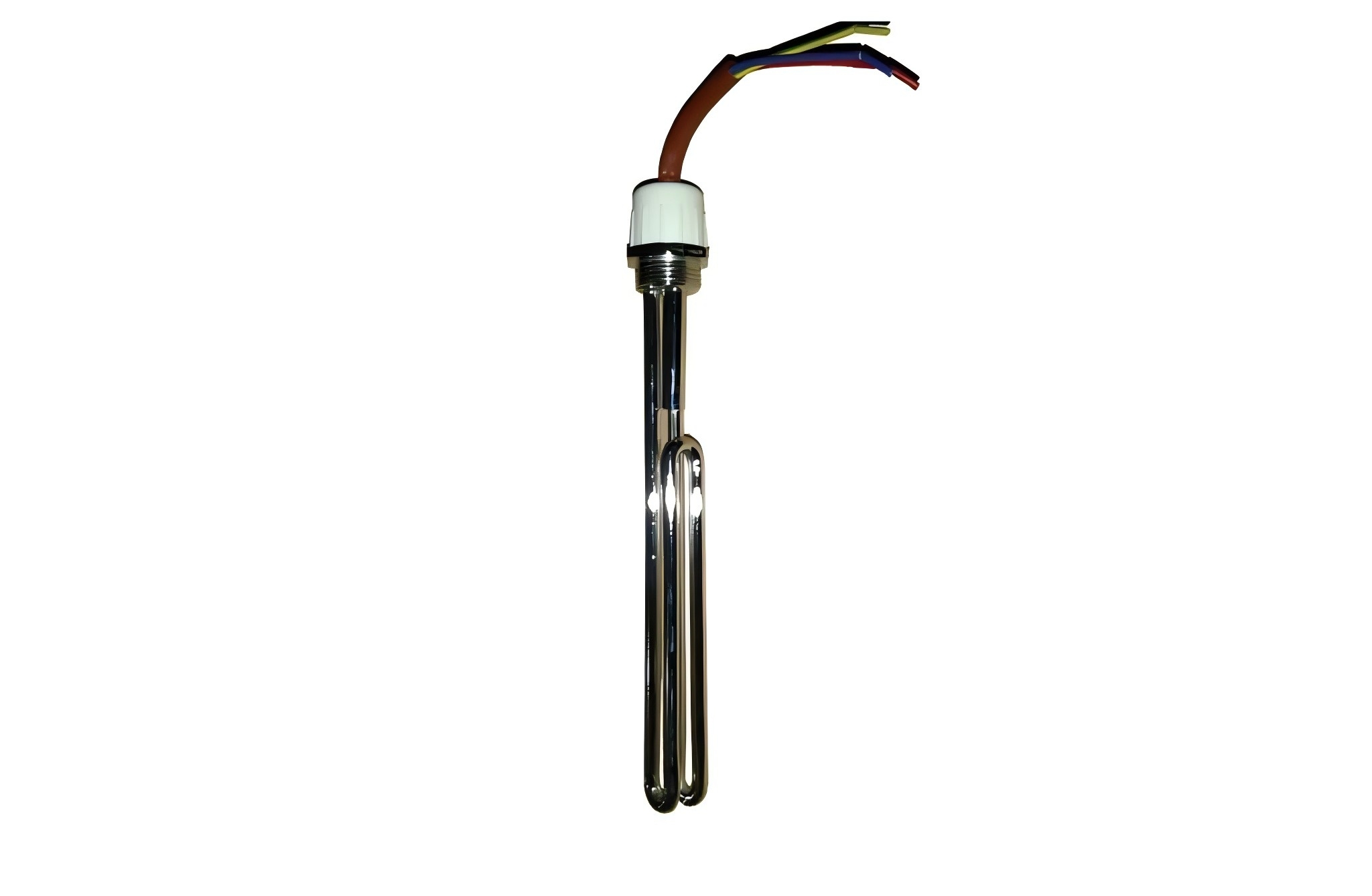

Back-up Heating Element：

1. Connection thread size: 1 inch

2. Rated electric voltage: 220V

3. Rated electric power: 1.5KW

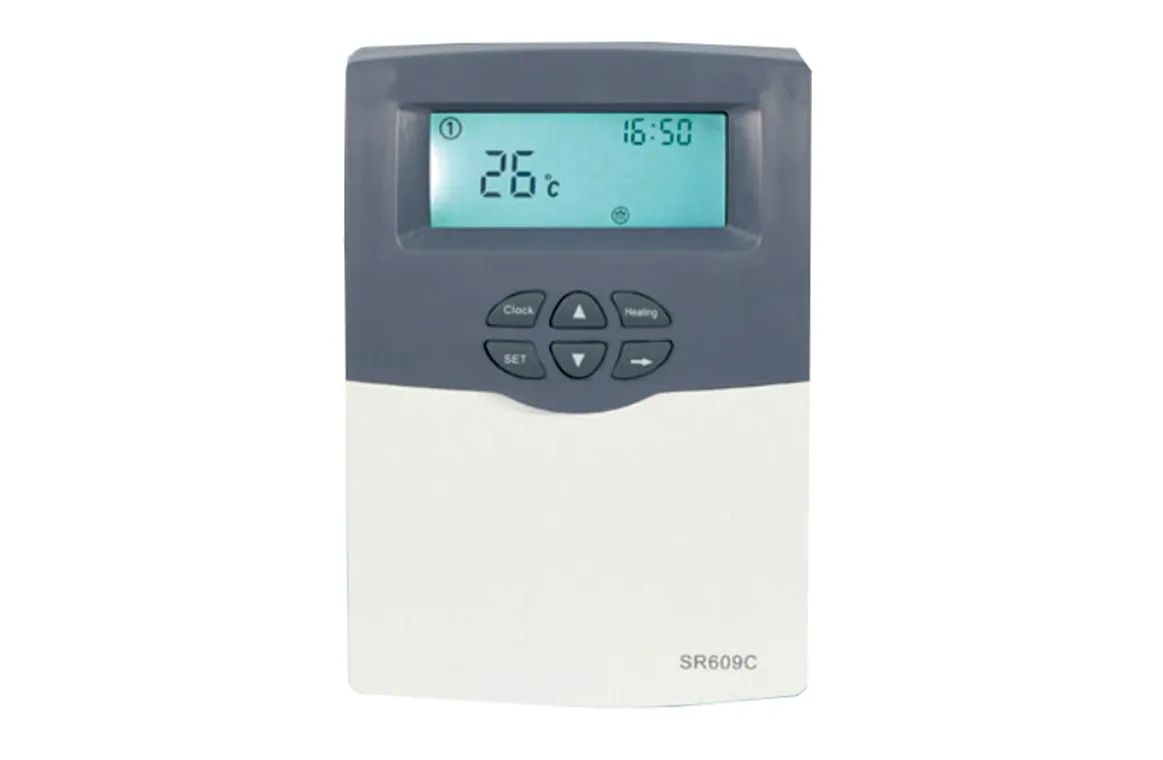

Controller 609C Solar Heater：

1. Dimension: 187mm x128mm x46mm

2. Power supply: 200~240V/ AC 60Hz

3. Power consumption:< 3W

4. Accuracy of temperature measuring: ± 2oC

5. Range of tank temperature measuring: 0 ~100 oC

6. Suitable power of electrical heater, ≤ 2000W

7. Control-able electric tracing R1, ≤600W(Optional)

8. Input signal: T tank temperature sensor, TC,

9.Electric tracing sensor (Optional)

10. Output signal: H1 for electric heater, R1 for

11. Electric tracing (Optional)

12. Ambient temperature:-10oC ~ 50oC

13. Water proof grade:IP40
